2.7-2.9GHz High-Power WR284 Waveguide Circulator

For RF engineers tasked with designing high-power S-band systems, component reliability, power handling, and standard compliance are non-negotiable. Our WR284(BJ32) Waveguide Circulator is engineered to meet these rigorous demands, delivering consistent performance across 2.7-2.9GHz with exceptional power capabilities tailored for mission-critical applications.

Technical Specifications (Engineer-Centric Details)：

Parameter Value
Operating Frequency 2.7–2.9 GHz (S-band)
CW Power 200W
Peak Power 200KW
Waveguide Interface WR284 (BJ32/IEC R32 compliant, 72.14×34.04mm inner cross-section)
Mechanical Construction Aerospace-grade aluminum alloy (-55°C to +85°C)
Electrical Performance Insertion Loss ≤0.3dB; Isolation ≥20dB; VSWR ≤1.2:1 (typ.)



Key Advantages：

  1. 30% power design margin (200W CW/200KW peak) for high-duty-cycle reliability
  2. GB/T 11450/IEC 60153-1 compliance – seamless integration with existing WR284 systems
  3. Optimized thermal management to prevent performance degradation
  4. No custom adapters required (standard compatibility)



Target Engineering Applications：

  1. S-band radar systems (weather, air traffic control, surveillance)
  2. High-power microwave (HPM) test benches
  3. Aerospace and defense communication transceivers
  4. Industrial microwave processing equipment
  5. Satellite ground station transmitters

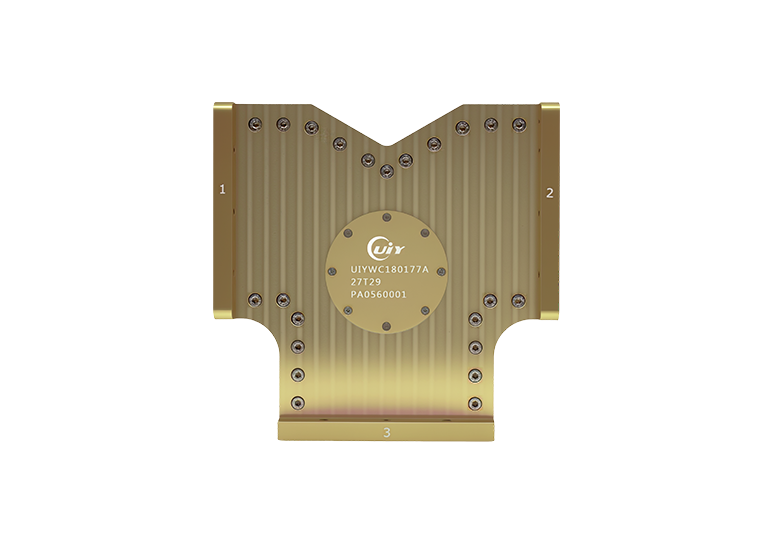

Physical Product Images：

波导环形器



Engineering Support：

We provide full technical documentation (datasheet, S parameters) to streamline integration into your design workflow. Custom modifications (e.g., flanges, connector options, extended temperature ranges) are available for specialized applications—contact our engineering/sales team to discuss your project requirements.
