Amid the global rollout of 5G-A, pre-commercialization of 6G, and rapid upgrades in radar & satellite communication systems, the performance bottleneck of high-frequency RF components has become a key constraint to technological breakthroughs. UIY’s 9-10GHz Embedded Circulator, tailor-made for core X-band applications, delivers ultra-reliable directional signal transmission solutions for communications, defense, industrial IoT, and more, leveraging four core advantages: low insertion loss, high isolation, miniaturization, and customizable high power.
Technical Specifications (Engineer-Centric Details)：
| Key Parameters | Parameters | Product Advantages |
| Insertion Loss Max(dB) | 0.3dB | Signal attenuation is negligible, significantly improving the system’s energy efficiency. |
| Isolation Min(dB) | 23dB | Effectively blocks reverse interference signals, suppresses crosstalk and reflections, ensuring signal transmission purity. |
| VSWR Max | 1.2 | Optimized impedance matching minimizes system mismatch risks |
| Average Power (W) | Customized, 65W max | Covering the full spectrum from ultra-low power to medium-high power applications, it adapts to diverse requirements ranging from indoor devices to outdoor radar systems. |
| Dimension LxWxH(mm) | 8.9×15×7.8mm | Embedded compact design, perfectly suited for space-constrained high-density integration scenarios |
Model Number: UIYDC815A9T10

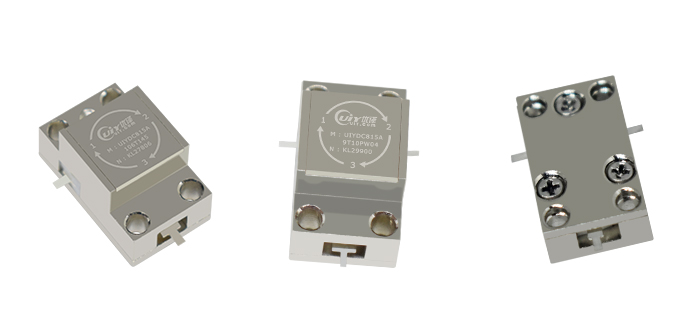

Physical images:
Currently, the 5-10GHz frequency band serves as the core deployment range for 5G-A and 6G, with its market scale expanding rapidly. This 9-10GHz embedded circulator perfectly aligns with the demands of popular applications such as base station upgrades, satellite internet, smart radar, and industrial IoT, establishing itself as an essential product in the global RF device market. UIY leverages proprietary core technologies to deliver RF device solutions that combine stability with innovation.
Please contact us via email or phone for further details.
