In the fast-evolving landscape of RF (Radio Frequency) and microwave technology, the demand for compact, high-efficiency components continues to soar. Among the standout products leading this trend is the 5.65 – 5.9GHz Surface Mount Circulator, a hot-selling solution that combines precision engineering, space-saving design, and reliable performance—making it a top choice for engineers and manufacturers worldwide.
At first glance, this circulator’s dimensions of Φ9.8×7mm set it apart from traditional bulkier alternatives. Its ultra-compact surface mount form factor is a game-changer for modern electronic devices, where miniaturization is key without compromising functionality. Whether integrated into dense circuit boards, portable communication devices, or space-constrained industrial equipment, this circulator fits seamlessly, freeing up valuable real estate for other critical components while maintaining optimal signal integrity.
Beyond its compact size, the 5.65 – 5.9GHz operating frequency range positions this circulator as a versatile asset across multiple high-demand applications. This frequency band is widely utilized in emerging technologies such as 5G small cells, wireless local area networks (WLAN), industrial IoT (Internet of Things) devices, and point-to-point microwave communication systems. In 5G deployments, for instance, the circulator plays a pivotal role in isolating transmit and receive signals, reducing interference, and enhancing the overall efficiency of base stations and user equipment. Similarly, in WLAN and IoT devices, it ensures stable signal transmission even in crowded frequency environments, supporting seamless connectivity for smart homes, industrial automation, and wearable tech.
Specific specifications are as follows:
| Model Number | UIYSC10A565T59 |
| Freq. Range (GHz) | 5.65 to 5.9 |
| Insertion Loss Max(dB) | 0.3 |
| Isolation Min(dB) | 21 |
| VSWR Max | 1.2 |
| Forward Power(W) | 30 |
| Reverse Power(W) | 30 |
| Connector Type | SMT |
| Temp.(°C) | -40 ~ +85 |
| Dimension LxWxH(mm) |
Φ9.8×7 |

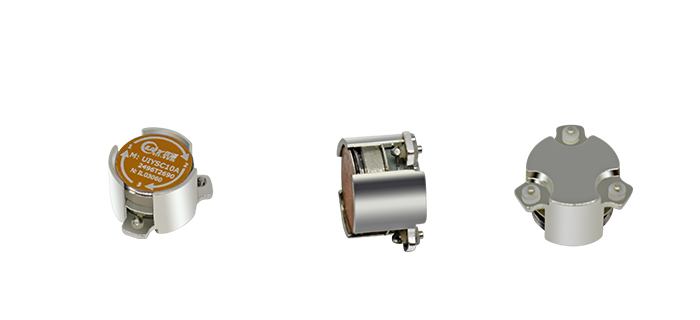

Physical Product Images:
For more information on other related products or custom requirements for smt circulators, please feel free to contact us.
