UIYDC1919A3200T3400 drop in circulator is a high-performance RF component tailored for 5G applications in the 3200–3400MHz band (n78 indoor band). It delivers cost-effective solutions for operators’ indoor coverage, small-cell development and RF system integration, and satisfies the strict demands for stable signal transmission in high-density environments.
As the indoor-specialized portion of the n78 band, 3200–3400MHz is recognized as the ideal mid-band for 5G deployment. It combines strong penetration performance and high transmission speed, effectively addressing the indoor coverage limitations of macro base stations. Supported by a mature industry ecosystem, excellent terminal compatibility and sufficient bandwidth, it enables high-speed, low-latency services while reducing construction and operation costs for operators through optimized deployment density.
Benefiting from superior band characteristics and reliable performance, this circulator is widely applied in:
- 5G coverage for high-traffic venues including shopping malls, office buildings and hospitals;
- Signal enhancement in enclosed areas such as subways and underground parking lots;
- Private communication networks for industrial Internet and smart campuses;
- Integration with 5G indoor small cells and distributed antenna systems (DAS);
- Matching with RF test equipment and other microwave components.
Core Product Advantages
| Advantage Category | Specific Description |
| Precise Band Adaptation | Custom-designed for 3200–3400MHz (n78 indoor dedicated band), perfectly matching 5G indoor deployment requirements. |
| Superior Electrical
Performance |
High isolation, low loss, and excellent matching performance ensure clearer signal transmission and a more stable link.
Operating at +20~+30°C (normal temperature): Insertion Loss＜0.25dB; Isolation > 25dB; VSWR＜1.15 Operating at -40~+85°C (full temperature range): Insertion Loss＜0.30 dB; Isolation > 23dB; VSWR＜1.20 |
| Robust Power Capacity | 100W rated power, ideal for high-density communication scenarios. |
| Efficient Deployment | Compact size at 19×19×8.6mm, saves installation space and requires no complex adjustment. |
| High Cost-Effectiveness | Integrated design reduces procurement and deployment costs, while optimized band performance lowers base station deployment density. |
| Compliance & Quality Assurance | Compliant with RoHS, REACH, and ISO 9001 certifications, with complete test data provided. |
Product Model: UIYDC1919A3200T3400

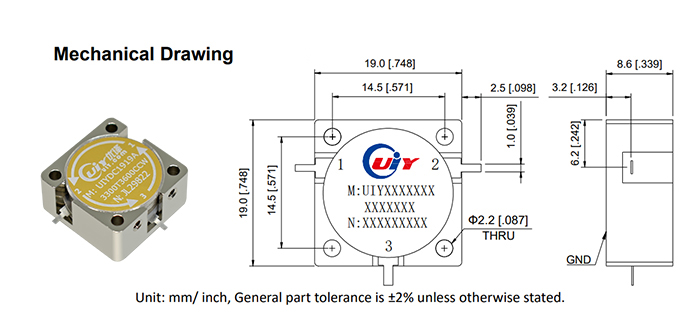

Product photos/technical drawings:
Conclusion:Through targeted design optimization, the UIYDC1919A3200T3400 fully unlocks the application potential of the 3200-3400MHz band. It strikes a balance between technical performance stability and engineering deployment practicality, achieving a seamless integration of performance, efficiency, and cost-effectiveness.
For further product details, technical parameter verification, or collaboration discussions, please feel free to contact us via email at sales@uiyinc.com or phone at +86-755-83748888. Our team is dedicated to providing professional technical support and services.
