The 4.0~8.0GHz C-band is widely deployed in microwave communication, broadband power amplification, precision detection, and RF test systems. Equipment operating in this frequency band demands superior signal purity, high transmission efficiency, and outstanding operational stability. Conventional wideband isolators on the market often suffer from poor full-band consistency and insufficient high-frequency isolation. Under high-power and high-density integration operating conditions, these defects easily cause amplifier self-oscillation, signal spurious emissions, power drop, and front-end device burnout, restricting equipment performance compliance and mass production efficiency.
To address the above debugging and mass production pain points of C-band RF systems, the optimized and finalized UIYBDI2122A4T8 drop-in isolator adopts a specialized wideband performance design. Integrating excellent high-frequency transmission characteristics, high power handling capability, and miniaturized architecture, this component effectively eliminates common engineering issues such as wideband link interference and transmission loss. It serves as a standardized, highly compatible device solution for the research and mass production of various C-band RF equipment. The core electrical specifications are listed below.
Core Technical Specifications
| Parameter | Specification |
| Model Number | UIYBDI2122A4T8 |
| Frequency Range | 4.0 ~ 8.0GHz (Full Band) |
| Electrical Performance | Insertion Loss:<0.5dB; Isolation: > 18.0dB; VSWR:<1.30 |
| Forward Power | 100W |
| Reverse Power | 20W |
| Connector Type | TAB (Drop-in) |
| Working Temp. | -55 ~ +85℃ |
| Dimensions (L×W×H) | 21×22.5×15mm |

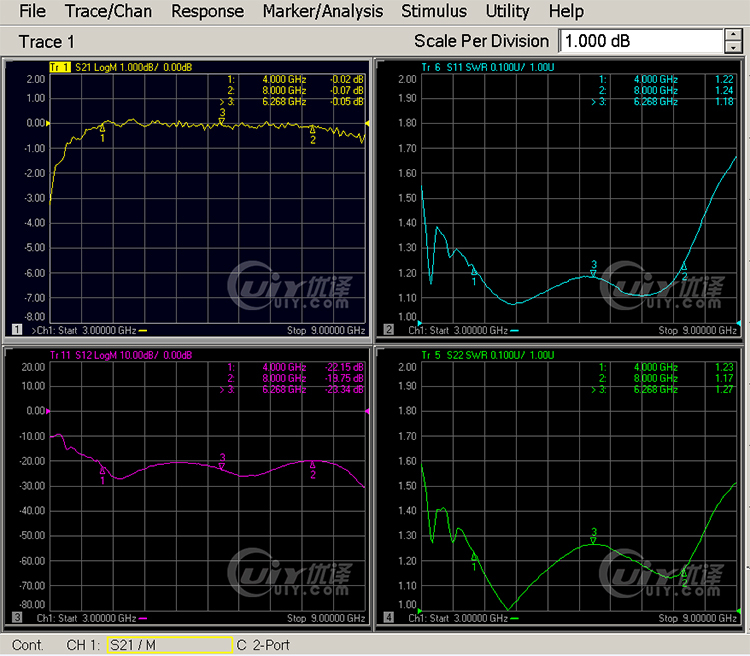

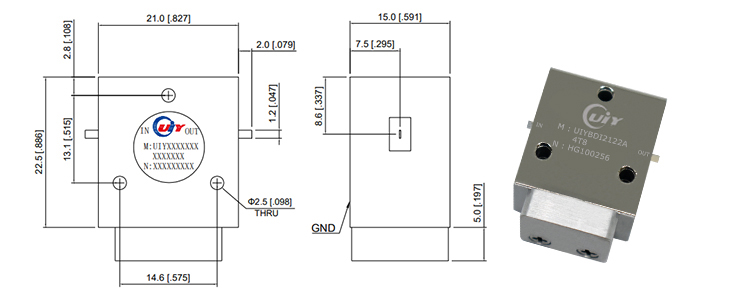

Product photos/technical drawings
Structural Design & Integration Advantages
Tailored for the miniaturization and high-volume integration trends of modern RF devices, this isolator features a standardized TAB drop-in structure. It effectively eliminates the inherent drawbacks of traditional coaxial isolators, including high parasitic interference, excessive space occupation, and poor assembly consistency. The streamlined hardware architecture delivers excellent high-frequency performance and superior compatibility for automated mass production, fully meeting the structural design requirements of precision C-band RF equipment.
- Low Parasitic High-Frequency Performance: The integrated adapter-free structure suppresses high-frequency parasitic interference significantly, ensuring pure and stable RF link transmission across the full operating bandwidth.
- High Integration Compatibility: The compact form factor supports direct PCB surface mounting, perfectly adapting to the layout design of high-density microwave assemblies and miniaturized RF modules.
- Universal & Replaceable: Adopting industry-standard pin definitions and dimensions, it can directly replace mainstream equivalent devices without PCB modification or circuit debugging, greatly shortening R&D cycles.
- High Mass Production Stability: Manufactured with sealed and reinforced craftsmanship, the device features robust structural strength and consistent assembly performance, ideal for automated high-volume production.
Core Application Scenarios
Equipped with reliable wideband adaptability, stable power protection capability, and superior link transmission performance, this isolator covers mainstream C-band RF engineering applications. It complies with global industrial design standards and supports commercial, industrial, and military-grade project deployment.
- Broadband Power Amplifier Systems: Acts as a core protective component at the PA output stage, isolating reverse reflected waves to prevent amplifier self-oscillation and device burnout, ensuring stable operation of the transmission link.
- C-Band Microwave Communication Equipment: Suitable for private network communication and broadband transmitter modules, optimizing transmission efficiency and reducing unnecessary power loss to improve overall equipment performance.
- Microwave Detection & Radar Systems: Applied in industrial security and short-range detection radar links, stabilizing amplitude, restraining interference, and enhancing detection accuracy and operational reliability.
- Precision RF Test Platforms: Widely used in signal sources, calibration modules, and test fixtures. Its excellent parameter consistency and low temperature drift effectively avoid test data deviation and measurement errors.
- Military-Grade Microwave Assemblies: Capable of withstanding extreme temperature fluctuations and strong vibration environments with negligible parameter drift, meeting strict standards for miniaturized microwave transceivers and electronic warfare equipment.
Product Summary
The UIYBDI2122A4T8 is a standardized high-performance isolator optimized for 4~8GHz C-band applications. It integrates excellent wideband transmission performance, reliable reverse signal protection, and miniaturized integration advantages, solving typical RF link problems including transmission loss, reflection interference, and impedance mismatch. With rigorous reliability calibration, outstanding batch consistency, and wide-temperature stability, this component adapts to diversified R&D and production scenarios, helping engineers optimize overall RF performance and accelerate project iteration.
