[New] UIY releases 24~40GHz high frequency RF Isolator/Circulator

As per our customers varied requests, UIY continuously optimizes products and develops more solutions. Recommend our new 24~40GHz / 26~40GHz Isolator/Circulator today.

1

26.0~40.0GHz（15×23×15mm） Coaxial Circulator

Model:  UIYCC1523A
 Forward Power: 15W
Freq.Range: 26.0~40.0GHz Reverse Power: 15W
IL.:  1.5dB Connector Type: 2.92mm
Isolation: 15dB Temp.: -55~+85°C
VSWR: 1.5 Dimension LxWxH: 15×23×15mm

RF Characteristics

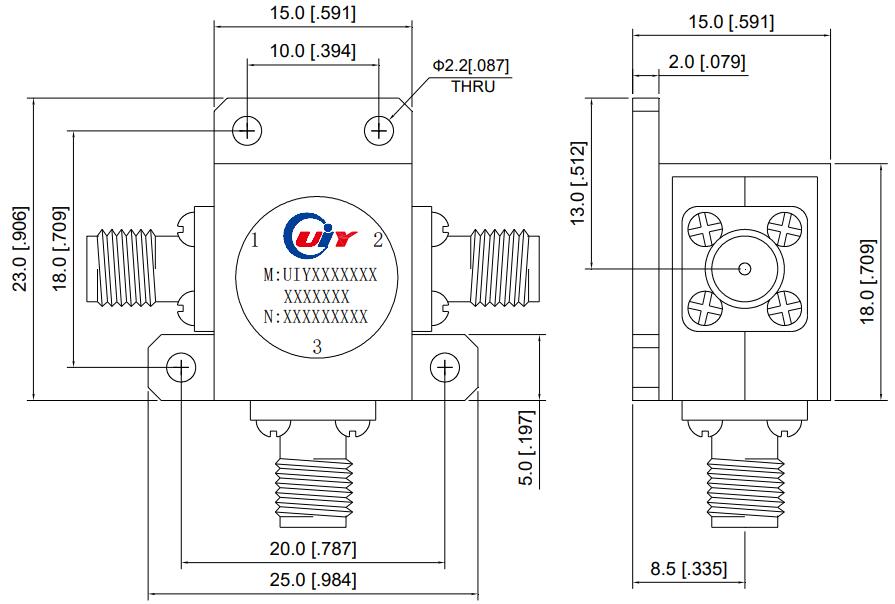

Mechanical Drawing



2

26.0~40.0GHz（15×23×15mm） Drop in Circulator

Model: UIYDC1523A
 Forward Power: 15W
Freq.Range: 26.0~40.0GHz Reverse Power: 15W
IL.: 1.5dB Connector Type: TAB
Isolation: 15dB Temp.: -55~+85°C
VSWR: 1.5 Dimension LxWxH: 15×23×15mm

RF Characteristics

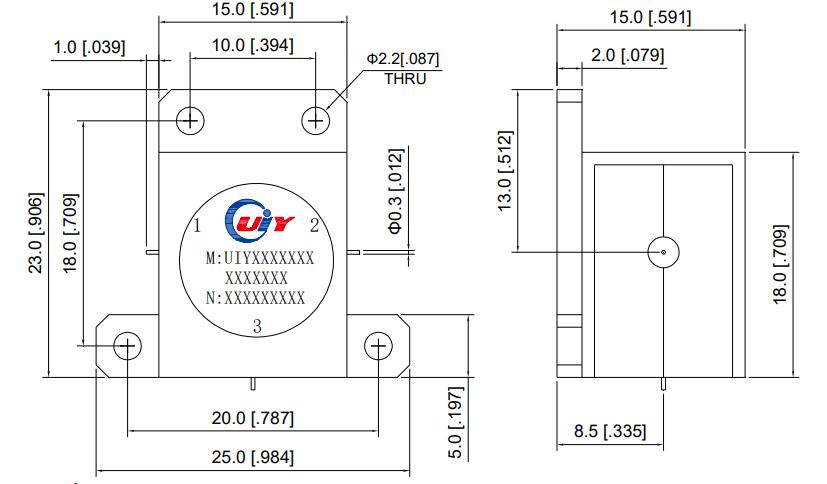

Mechanical Drawing

3

26.0~40.0GHz（11.1×25.6×15mm） Coaxial Isolator

Model: UIYCI1125A
 Forward Power: 15W
Freq.Range: 26.0~40.0GHz Reverse Power: 2W
IL.: 1.4dB Connector Type: 2.92mm
Isolation: 15dB Temp.: -55~+85°C
VSWR: 1.5 Dimension LxWxH: 11.1×25.6×15mm

RF Characteristics

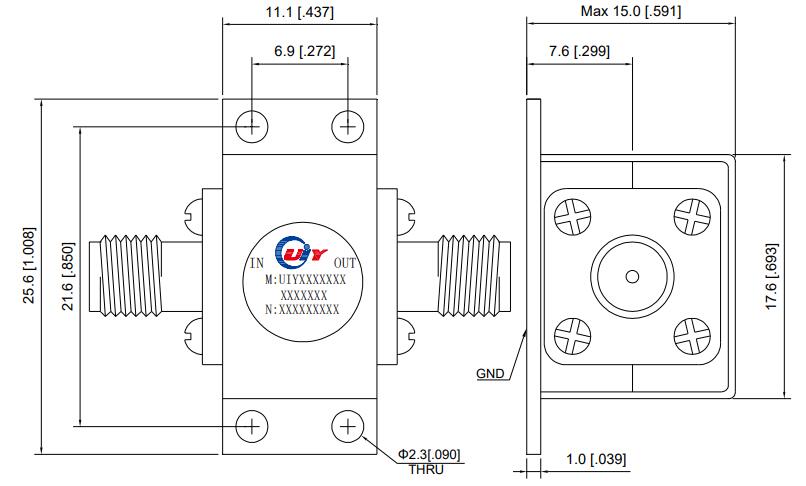

Mechanical Drawing

4

26.5~35.0GHz/26.5~40.0GHz  Coaxial Isolator

Model: UIYBCI1125A
 Forward Power: 15W
Freq.Range: 26.5~35.0GHz Reverse Power: 2W
IL.: 1.4dB Connector Type: 2.92mm
Isolation: 15dB Temp.: -55~+85°C
VSWR: 1.5 Dimension LxWxH: 11.1×25.6×15mm
Model: UIYBCI1125A
 Forward Power: 15W
Freq.Range: 26.5~40.0GHz Reverse Power: 2W
IL.: 1.8dB Connector Type: 2.92mm
Isolation: 12dB Temp.: -55~+85°C
VSWR: 1.7 Dimension LxWxH: 11.1×25.6×15mm

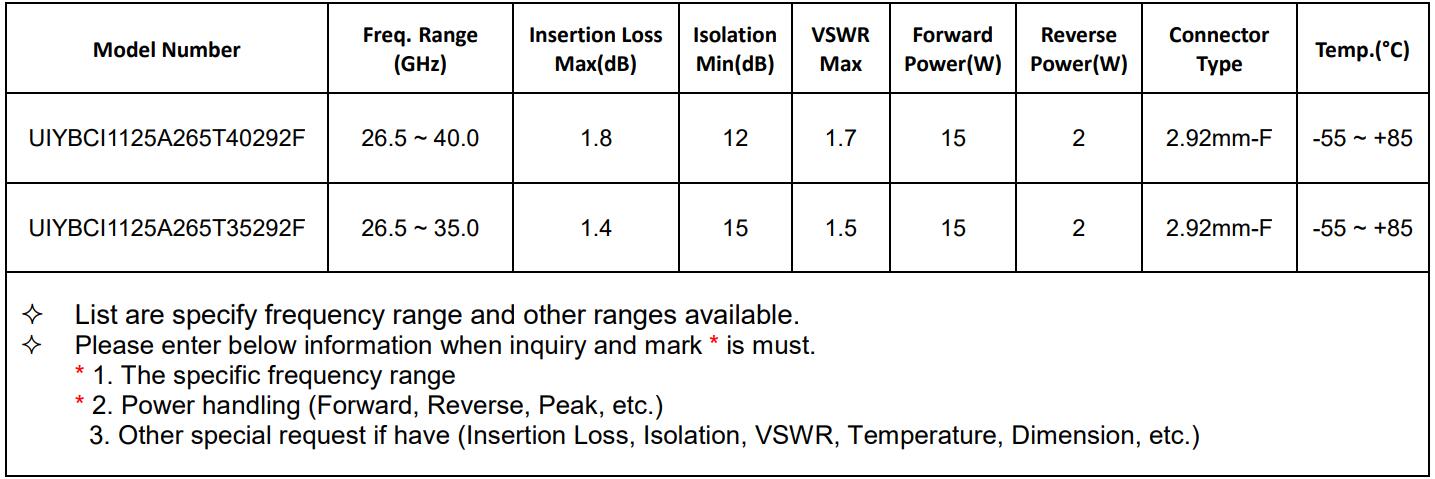

RF Characteristics

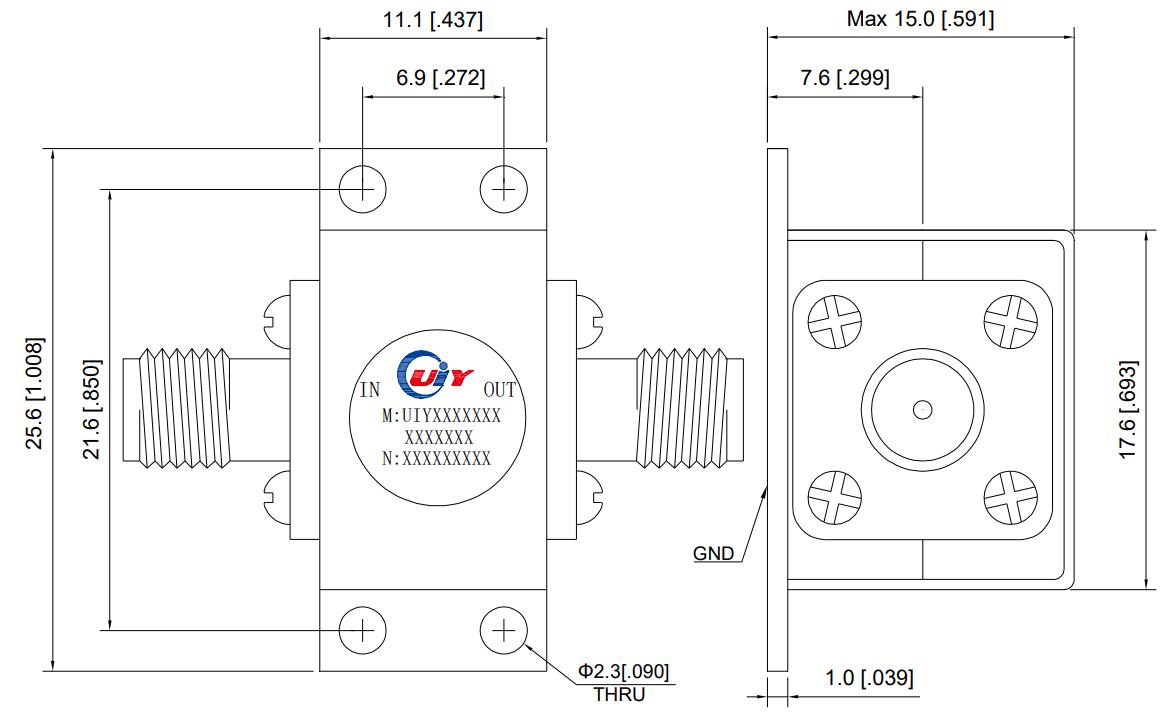

Mechanical Drawing

5

26.0~40.0GHz（11.1×25.6×15mm） Drop in Isolator

Model: UIYDI1125A
 Forward Power: 15W
Freq.Range: 26.0~40.0GHz Reverse Power: 2W
IL.: 1.5dB Connector Type: TAB
Isolation: 15dB Temp.: -55~+85°C
VSWR: 1.5 Dimension LxWxH: 11.1×25.6×15mm

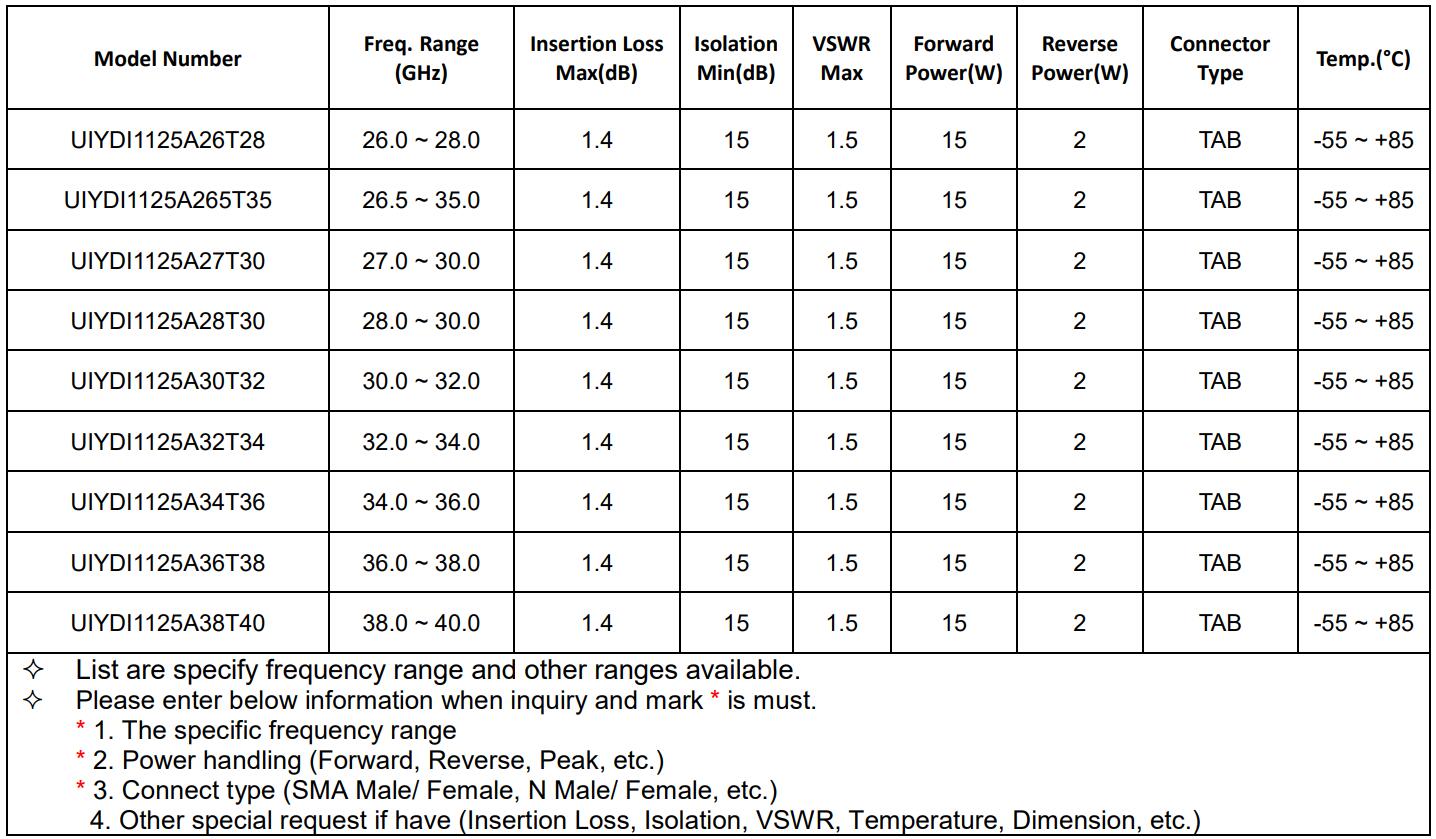

RF Characteristics

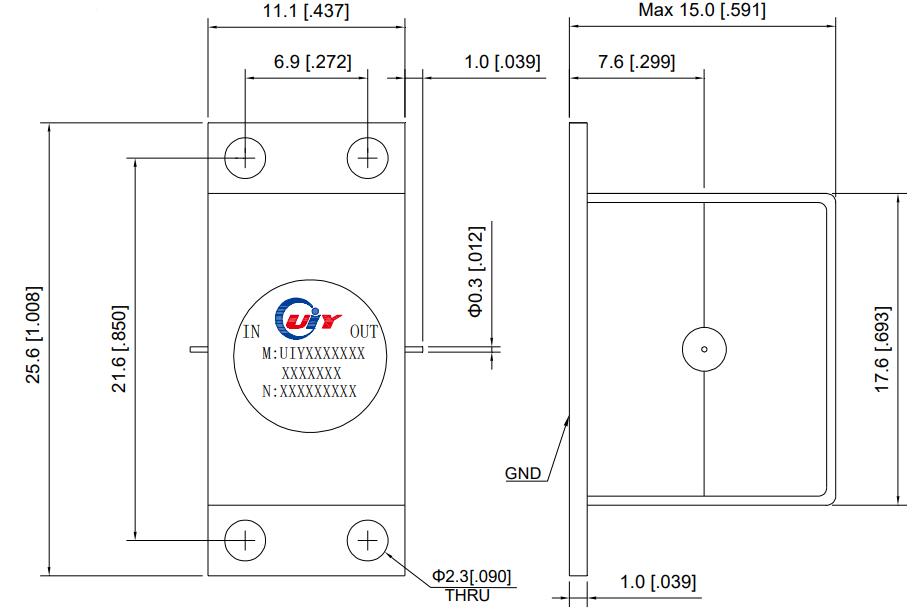

Mechanical Drawing

6

26.5~35.0GHz/26.5~40.0GHz  Drop in Isolator

Model: UIYBDI1125A
 Forward Power: 15W
Freq.Range: 26.5~35.0GHz Reverse Power: 2W
IL.:1.4dB Connector Type: TAB
Isolation: 15dB Temp.: -55~+85°C
VSWR: 1.5 Dimension LxWxH: 11.1×25.6×15mm
Model: UIYBDI1125A
 Forward Power: 15W
Freq.Range: 26.5~40.0GHz Reverse Power: 2W
IL.: 1.8dB Connector Type: TAB
Isolation: 12dB Temp.: -55~+85°C
VSWR: 1.7 Dimension LxWxH: 11.1×25.6×15mm

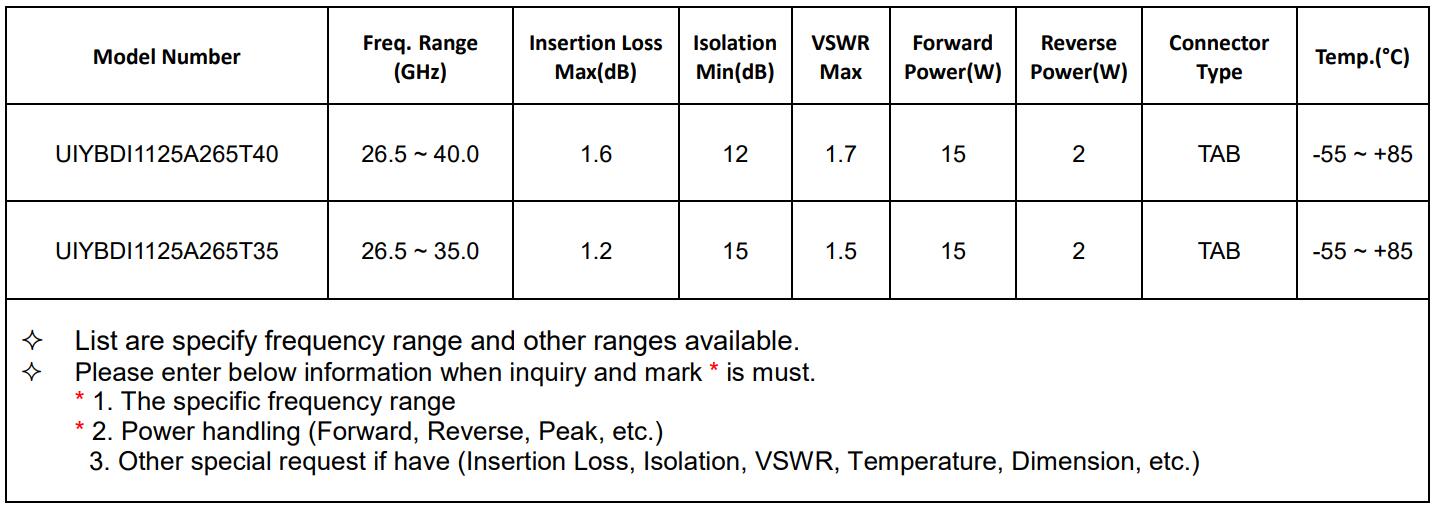

RF Characteristics

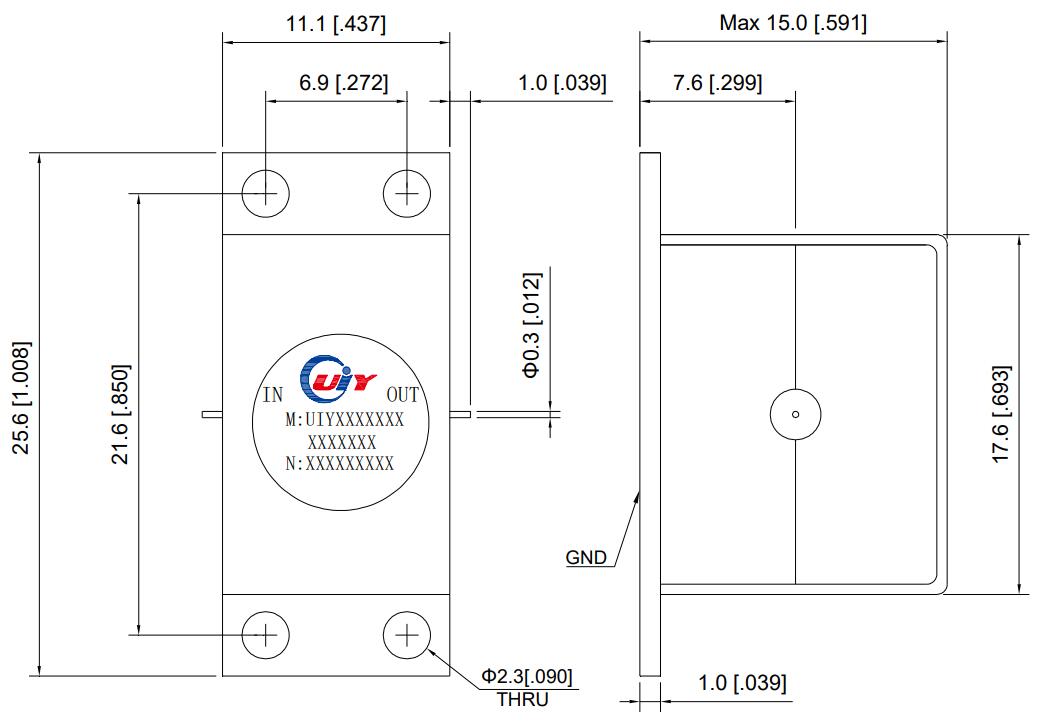

Mechanical Drawing

7

24.0~40.0GHz（4×4×3mm） Microstrip Isolator

Model: UIYMI44A
 Forward Power: 15W
Freq.Range: 24.0~40.0GHz Reverse Power: 2W
IL.: 0.7dB Connector Type: Microstrip
Isolation: 15dB Temp.: -55~+85°C
VSWR: 1.4 Dimension LxWxH: 4×4×3mm

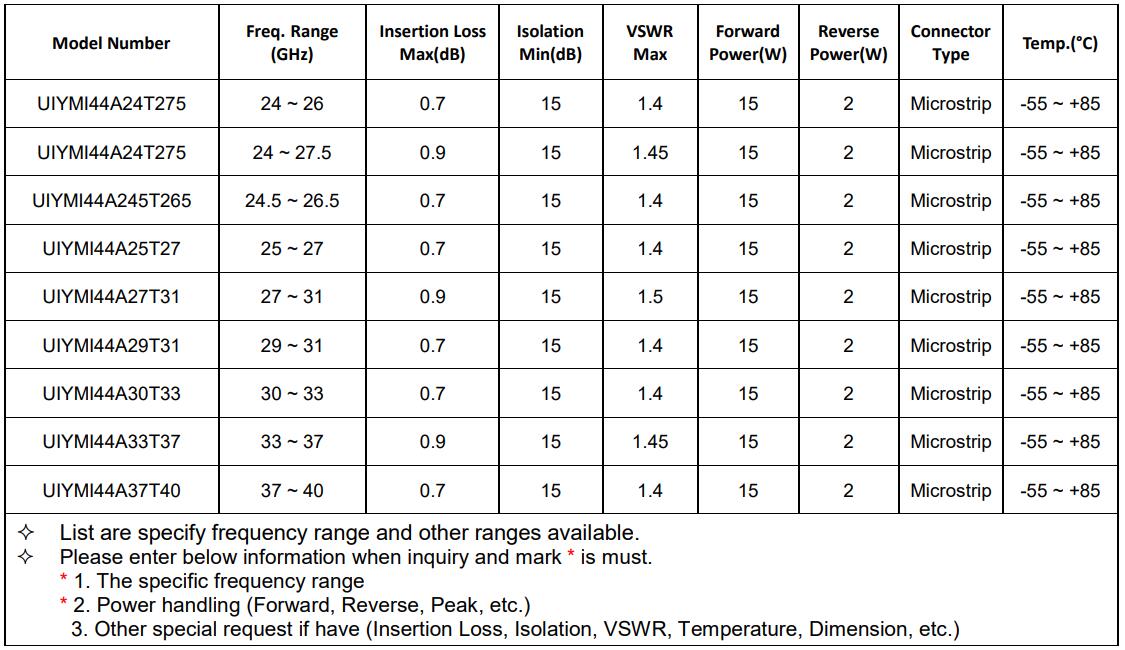

RF Characteristics

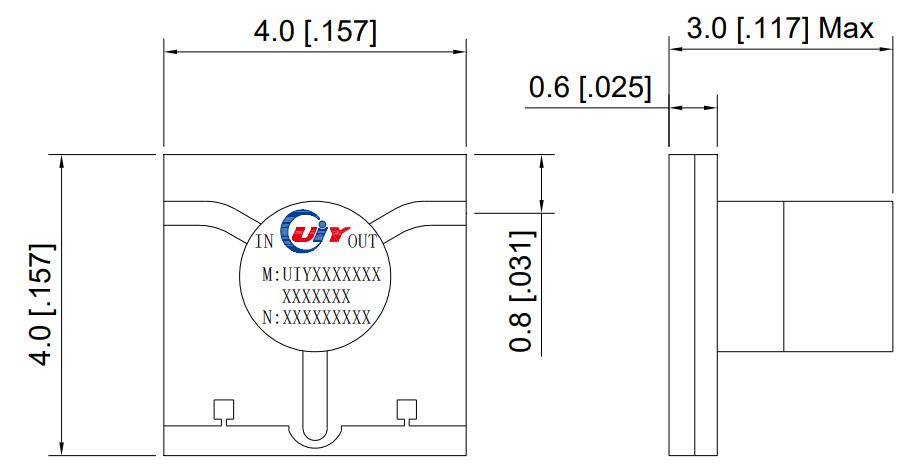

Mechanical Drawing

8

24.0~40.0GHz（4×4.6×3mm） Microstrip Isolator

Model: UIYMI44B
 Forward Power: 15W
Freq.Range: 24.0~40.0GHz Reverse Power: 4W
IL.: 0.7dB Connector Type: Microstrip
Isolation: 15dB Temp.: -55~+85°C
VSWR: 1.4 Dimension LxWxH: 4×4.6×3mm

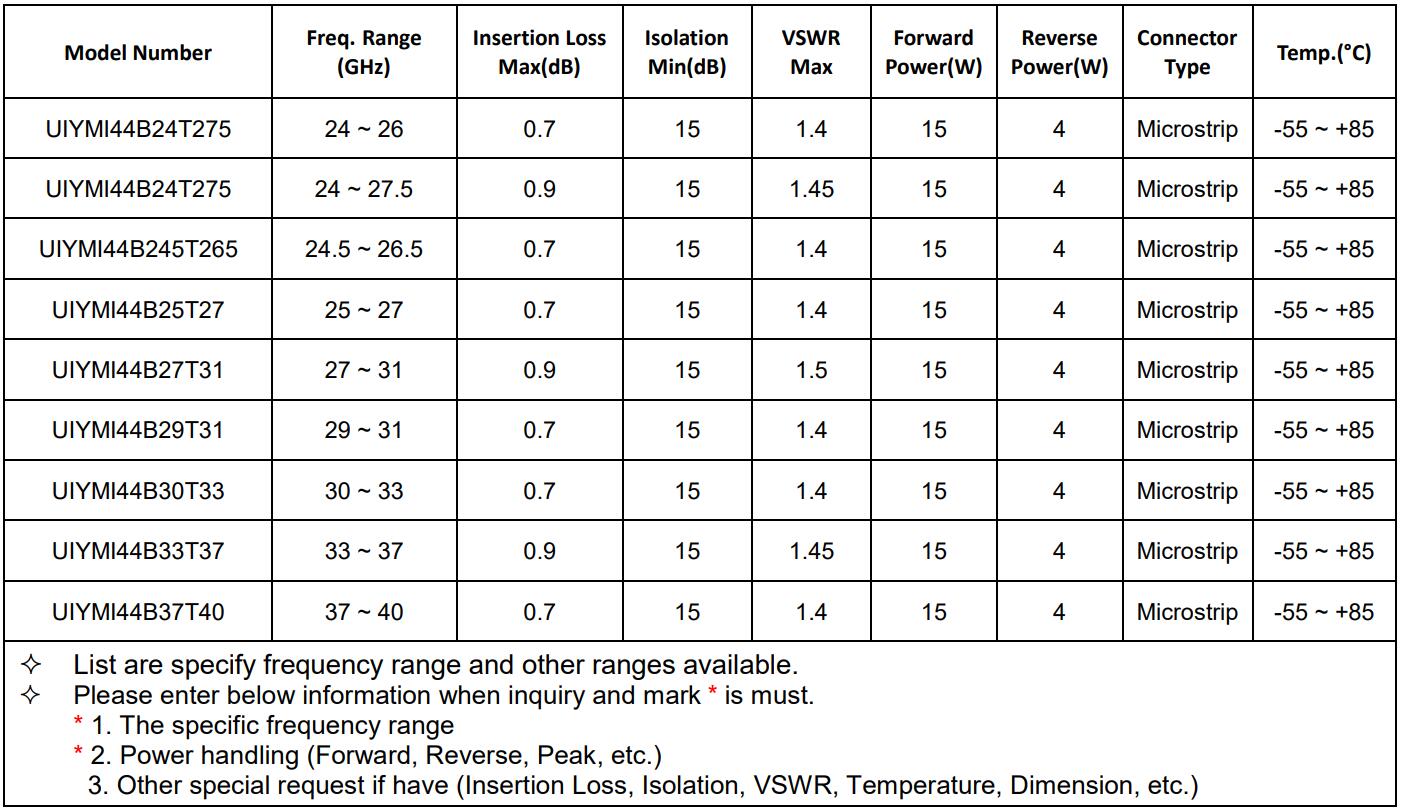

RF Characteristics

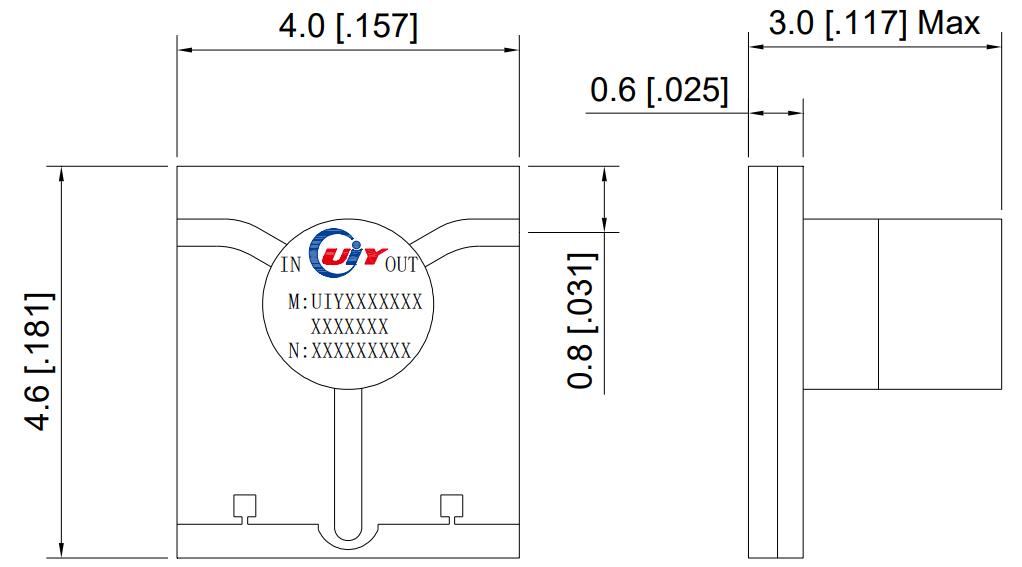

Mechanical Drawing

9

24.0~40.0GHz（4×4×3mm） Microstrip Circulator

Model: UIYMC44A
 Forward Power: 15W
Freq.Range: 24.0~40.0GHz Reverse Power: 15W
IL.: 0.7dB Connector Type: Microstrip
Isolation: 15dB Temp.: -55~+85°C
VSWR: 1.4 Dimension LxWxH: 4×4×3mm

RF Characteristics

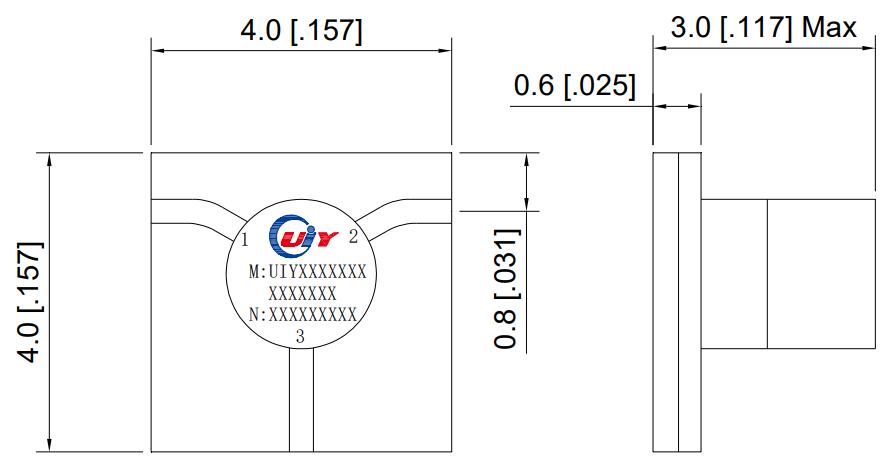

Mechanical Drawing
